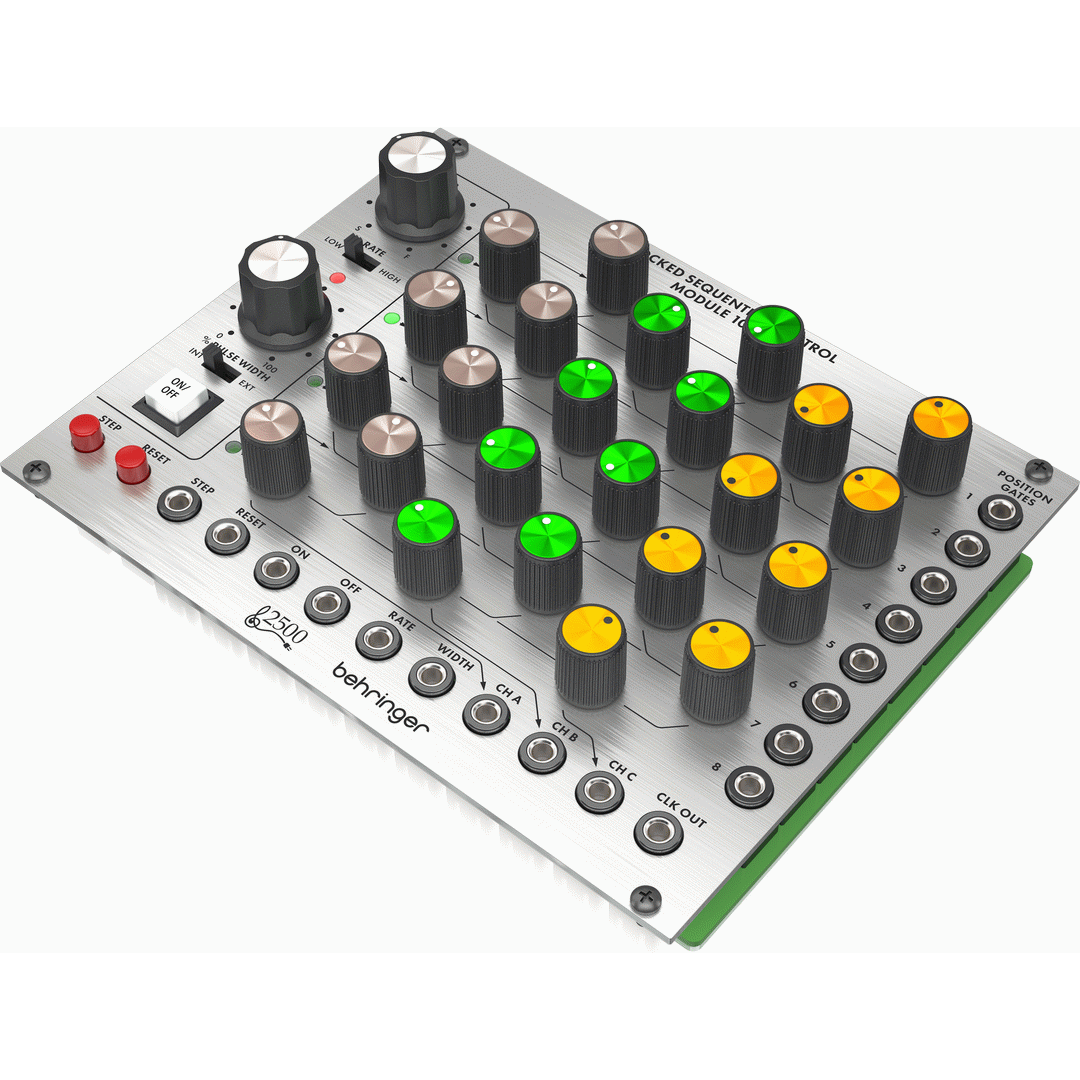

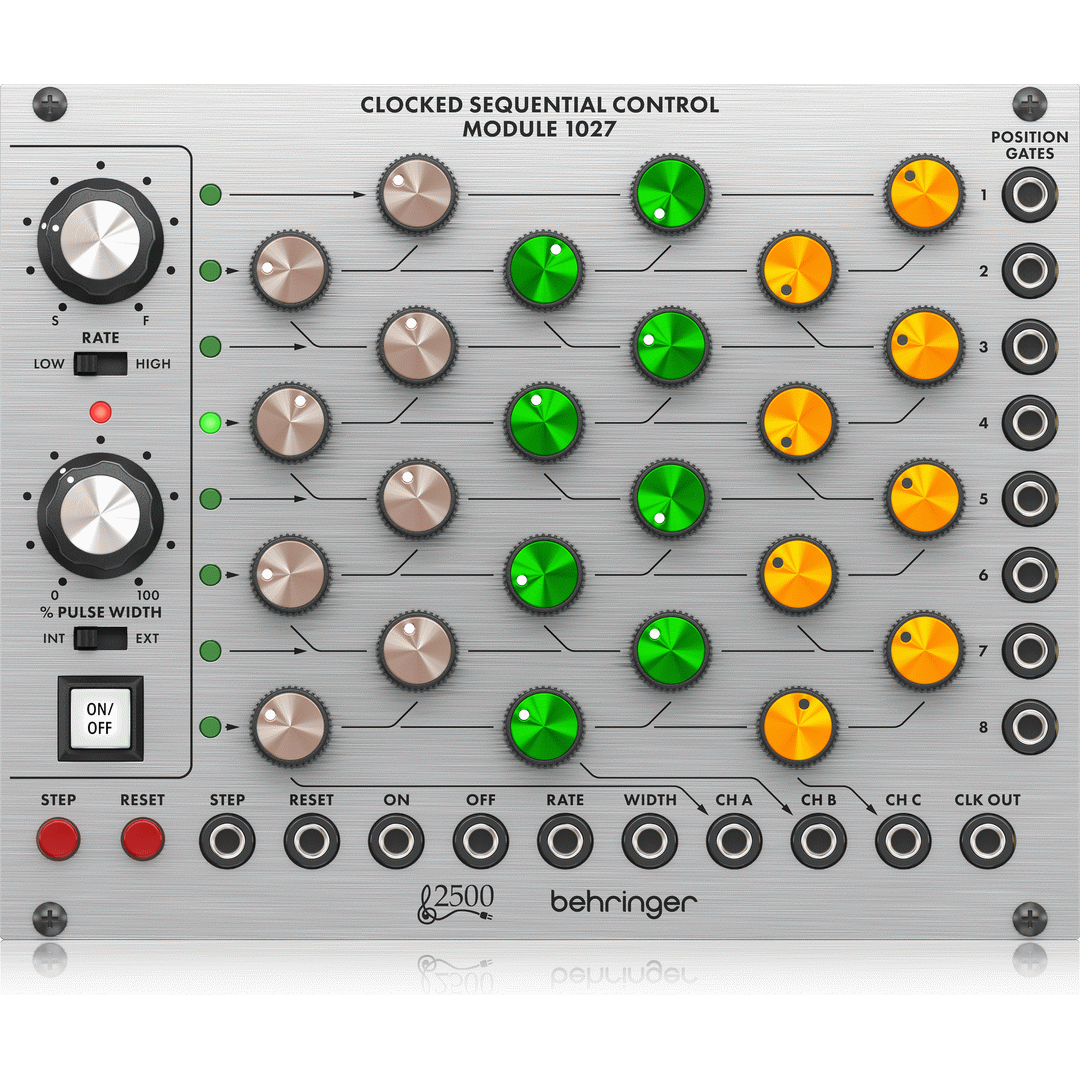

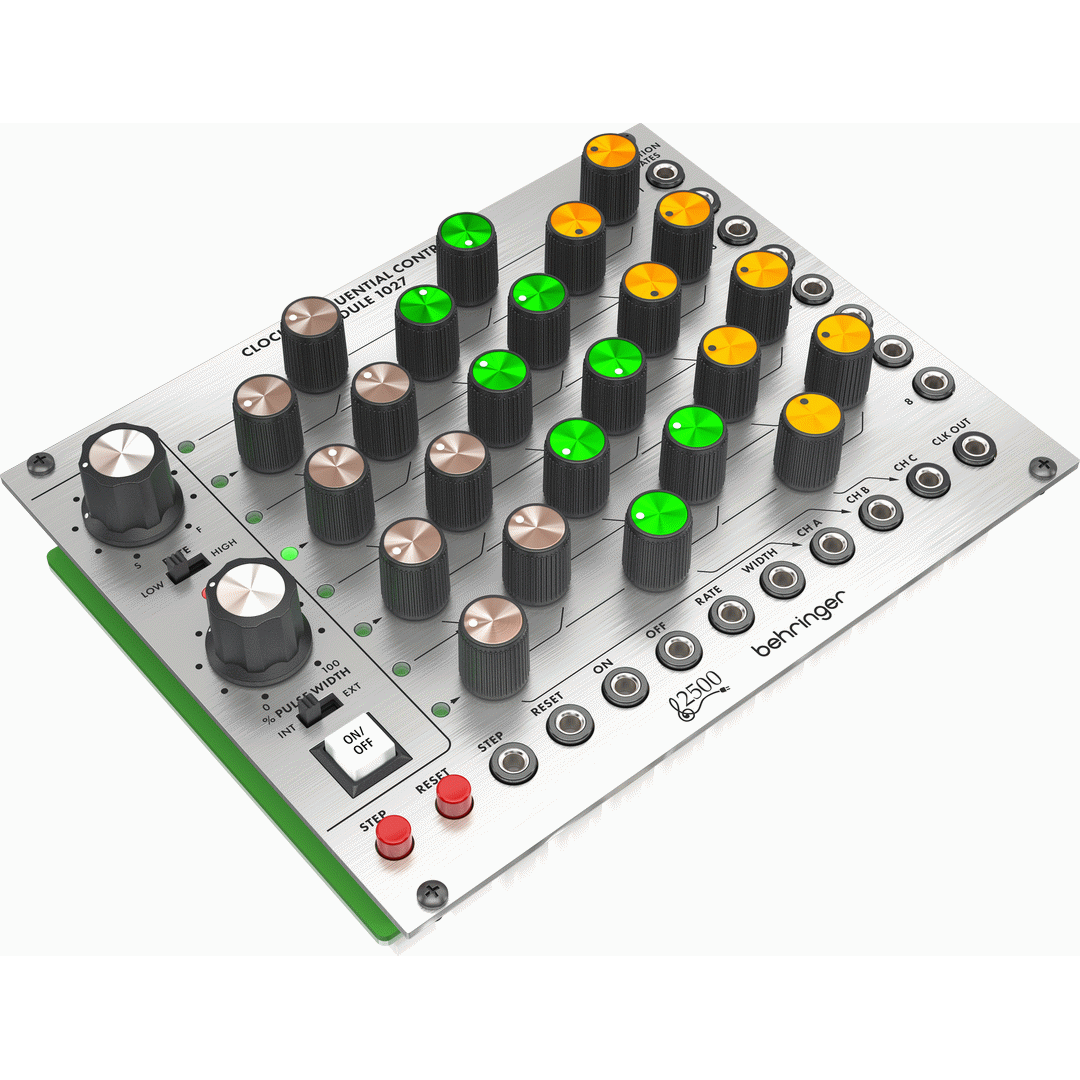

Behringer CLOCKED SEQUENTIAL CONTROL MODULE 1027 Eurorack Module

Behringer CLOCKED SEQUENTIAL CONTROL MODULE 1027 Eurorack Module

$139.00 AUD
$139.00 AUD $139.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Afterpay Available
  • PayPal Available
  • Zip Pay Available

The CLOCKED SEQUENTIAL CONTROL MODULE 1027 provides timed, clock-synced control voltage sequencing for a Eurorack patch, letting you build rhythmically locked modulation patterns rather than free-running ones. Syncing sequencing to a master clock keeps complex patches rhythmically coherent as they grow. The 1027 is a precision timing tool for structured modular sequencing, keeping complex patches rhythmically coherent as they grow instead of drifting into free-running modulation.

Features:

  • Classic 1027 clocked sequential controller module from the โ€™70s
  • Authentic reproduction of the circuitry from the โ€œ2500โ€ Series
  • Contains an integrated circuit 8-step counter and 3 channels (A, B and C) of control voltages
  • 8 rows of 3 controls provide 3 independently adjustable voltage outputs for each step of the counter
  • Built-in time base generator allows the sequencer to step automatically
  • Each row has an adjacent LED indicator to display the sequencer count
  • Illuminated push button is used to start and stop the internal clock
  • Rate of the internal clock can be adjusted from a stepping rate of 20 per minute to 400 per second by adjusting the pulse repetition frequency control and the external rate control signal
  • Internal clock can be turned on and off by applying pulses on the appropriate input connections
  • Clock pulse width and duration of the step voltages is adjusted from 0 to 100% by the pulse width control and the external width control signal
  • With the clock turned off the sequencer may be stepped along and reset manually using the front-panel push buttons
  • Control voltages on channel A, B and C range between 0 to 10V
  • The 1027 can be used to control other 2500 Series modules including the 1026 Preset Voltages or 1050 Mix Sequencer modules
  • Cable connections are provided on the rear of the PCB for this purpose (cable included)
  • Eurorack specs: 26HP, 50mA +12V, 30mA -12V
