Focusrite ISA ADN2 Dante A/D Card

Focusrite ISA ADN2 Dante A/D Card

$739.00 AUD
$819.00 AUD $739.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Afterpay Available
  • PayPal Available
  • Zip Pay Available

Description

With the introduction of the ISA ADN2, the classic ISA mic pre can be implemented directly on a Dante network, providing console-grade preamps to the most advanced of audio networks. ISA ADN2 is an optional two-channel A-D card that provides high-quality analogue-to-digital conversion for the ISA One mic preamp and DI. Featuring Dante, AES3, ADAT and S/PDIF connectivity, the card operates at sample rates up to 24-bit/192kHz.

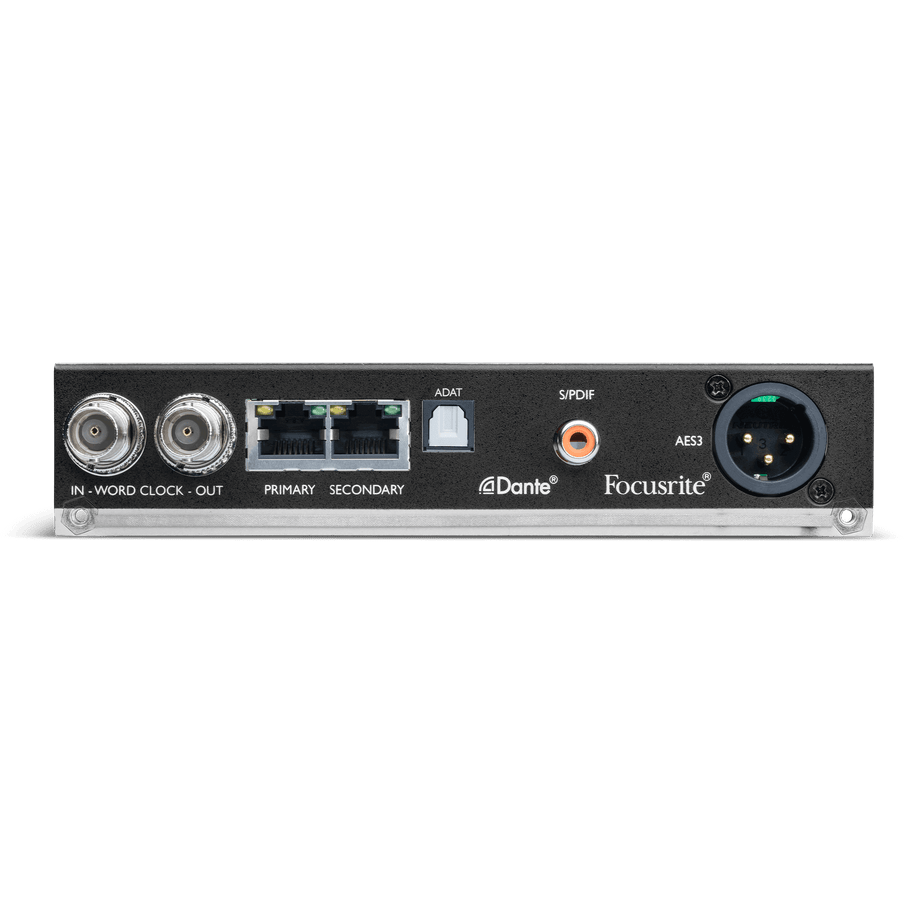

The card offers a familiar set of standard professional connectors with primary and secondary RJ45 Dante output ports, an XLR connector for AES3 output, a TOSLINK connector for ADAT output and RCA connector for S/PDIF output. Word Clock I/O on BNC connectors allows synchronisation with many external devices.

Dante outputs on the card provide ISA One with network connectivity to all Focusrite RedNet devices and Red interfaces, as well as any other Dante-enabled device from hundreds of manufacturers. Metering and settings are accessed through RedNet Control, routing is configured using Dante Controller. RedNet Control software included.

Two-channel A-D card for ISA One, including Dante connectivity

ISA ADN2 is an optional two-channel A-D card that provides high-quality analogue-to-digital conversion for the ISA One mic preamp and DI. Featuring Dante, AES3, ADAT andS/PDIF connectivity, the card operates at sample rates up to 24-bit/192kHz.

The card offers primary and secondary RJ45 Dante output ports, an XLR connector for AES3 output, a TOSLINK connector for ADAT output and RCA connector for S/PDIFoutput. Word Clock I/O on BNC connectors allows synchronisation to multiple digital sources. This also includes syncing the Dante network to house clock,or for syncing external equipment to the Dante network.

Dante outputs on the card provide ISA One with network connectivity to all Focusrite RedNet devices and Red interfaces, as well as any other Dante-enabled device from hundreds of manufacturers. Metering and settings are accessed through RedNet Control, routing is configured using Dante Controller.

And as with all Focusrite Pro products, wherever you happen to be in the world, you can rely on a three-year warranty if any Focusrite Pro hardware needs repairing or replacing due to a manufacturing fault.

The Focusrite Studio Console reborn in your DAW

The Focusrite Studio Console defined countless hits of the 80s and 90s, thanks in large part to its ISA 110 Equaliser and ISA 130 Dynamics Modules. Brainworx's bx_console Focusrite plug-in brings you stunningly accurate emulations of both in a single plug-in, perfectly capturing the famously warm, open sound of two of the most revered pieces of studio hardware ever made.

Enjoy 3 years of warranty

All Focusrite products are built to the highest standards, and are designed to provide many years of reliable performance.

Features

  • Two-channels of high-quality, precision analogue-to-digital converter for ISA One
  • Up to 24-bit/192kHz sample rate
  • Dante connectivity via Primary and Secondary Ethernet ports provide redundancy and auto switchover in case of failure
  • Two-channel XLR connection for AES3 output
  • Two-channel RCA connection for S/PDIF output
  • Two-channel TOSLINK connector for ADAT output
  • Word Clock I/O on BNC connectors allows synchronisation with many external devices
  • RedNet Control and Dante Controller software (included) allow Dante routing and control from a computer; no hardware patching required

Specifications

  • Type: A-D Card
  • Compatibility: Focusrite ISA One
  • Number of Channels: 2
  • Outputs: 1 x XLR (AES3), 1 x Coax (S/PDIF), 1 x Optical Toslink (ADAT)
  • Data I/O: 2 x Ethernet (Dante)
  • Clock I/O: 1 x Word Clock
  • Bit Depth: 24-Bit
  • Sample Rate: 192kHz
