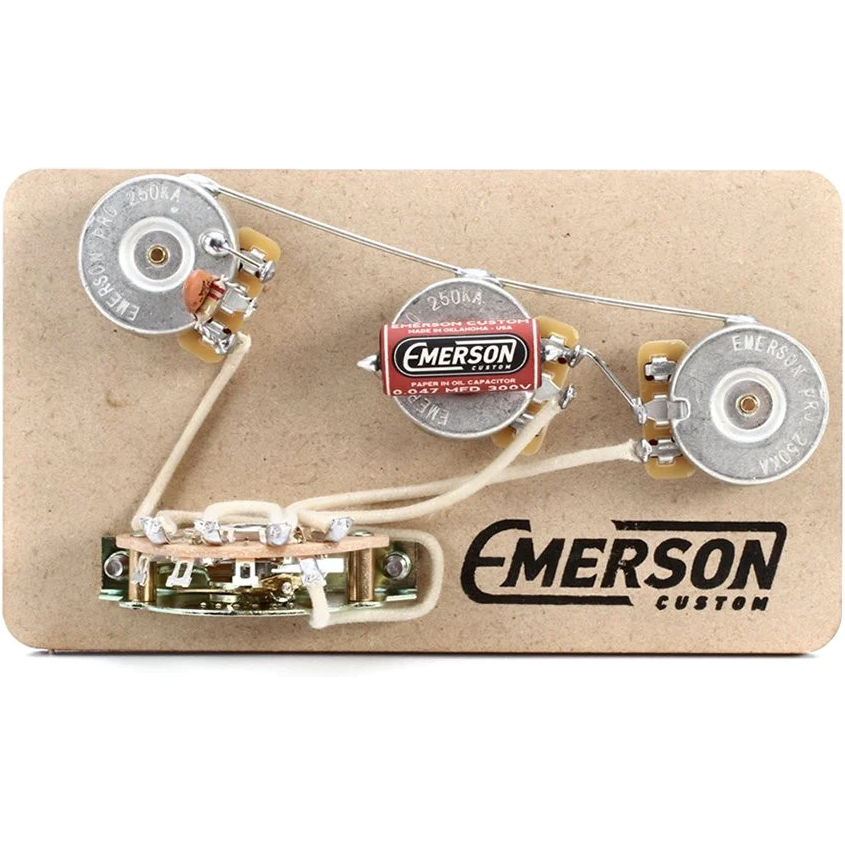

Emerson Custom Prewired Kit Stratocaster Blender 5-Way 250K Pots
Emerson Custom Prewired Kit Stratocaster Blender 5-Way 250K Pots
Couldn't load pickup availability
Afterpay Available
PayPal Available
Zip Pay Available
Description
Our Blender wiring has 1 volume, 1 master tone, and a Blender pot. In the neck position you can blend the bridge pickup in as much as you want. In the bridge position you can blend the neck pickup in as much as you want. In positions 2 and 4 you can have all three pickups on at once. The nicest part about it is the fact of it being so user friendly. Everything else seems to be hard to use on the fly.
Specifications
- 1: CTS Volume Pot (Master Volume) [3/8" Split Shaft]
- 1: CTS Tone Pot (Master Tone) [3/8" Split Shaft]
- 1: CTS 250K Blender Pot [3/8" Split Shaft]
- 1: 0.047uf Emerson Paper in Oil Capacitor *(0.022uf are used with 500K-Ohm Pots Option)*
- 1: Volume Mod (Treble Bleed; Retains Clarity when rolling back volume knob)
- 1: Prewired Jack
- 1: Wiring Diagram
Control Layout
- Master Volume
- Master Tone
- Blender Pot
SWITCH & BLENDER POT FUNCTION
Blender Pot on 10:
Position 1: Bridge
Position 2: Bridge & Middle
Position 3: Middle
Position 4: Middle & Neck
Position 5: Neck
Blender Pot on 1:
Position 1: Bridge w/ Neck Pickup Blended in
Position 2: Bridge & Middle w/ Neck Pickup Blended in
Position 3: Middle
Position 4: Middle & Neck w/ Bridge pickup Blended in
Position 5: Neck w/ Bridge Pickup Blended in
Installation Tips for Knobs on Split Shaft Pots
US Spec CTS split shaft pots are made to fit USA Spec 24 spline push-on knobs. Some USA & Import Guitars will need new USA Spec Knobs as even some US makers use import spec parts which will not work with our pots. We recommend that you don't rush the knob install process. If your knob is too tight and is not going on ,slightly crimp together the top of the potentiometers shaft ever so slightly so that when you go to push on the knob you don't damage the pot shaft by exerting too much downward pressure. If you have any questions regarding install please let us know. Thank you.
