Focusrite ISA ADN8 8 Channel A-D Card for ISA 428 & 828 MKII

Description

With the introduction of the ISA ADN8, the classic ISA mic pre can be implemented directly on a Dante network, providing console-grade preamps to the most advanced of audio networks. ISA ADN8 is an optional eight-channel A-D card that provides high-quality, precision analogue-to-digital conversion for the Focusrite ISA 428 MK2 and ISA 828 MK2 microphone preamps. Featuring Dante, AES3 and ADAT connectivity, the card operates at sample rates up to 24-bit/192kHz.

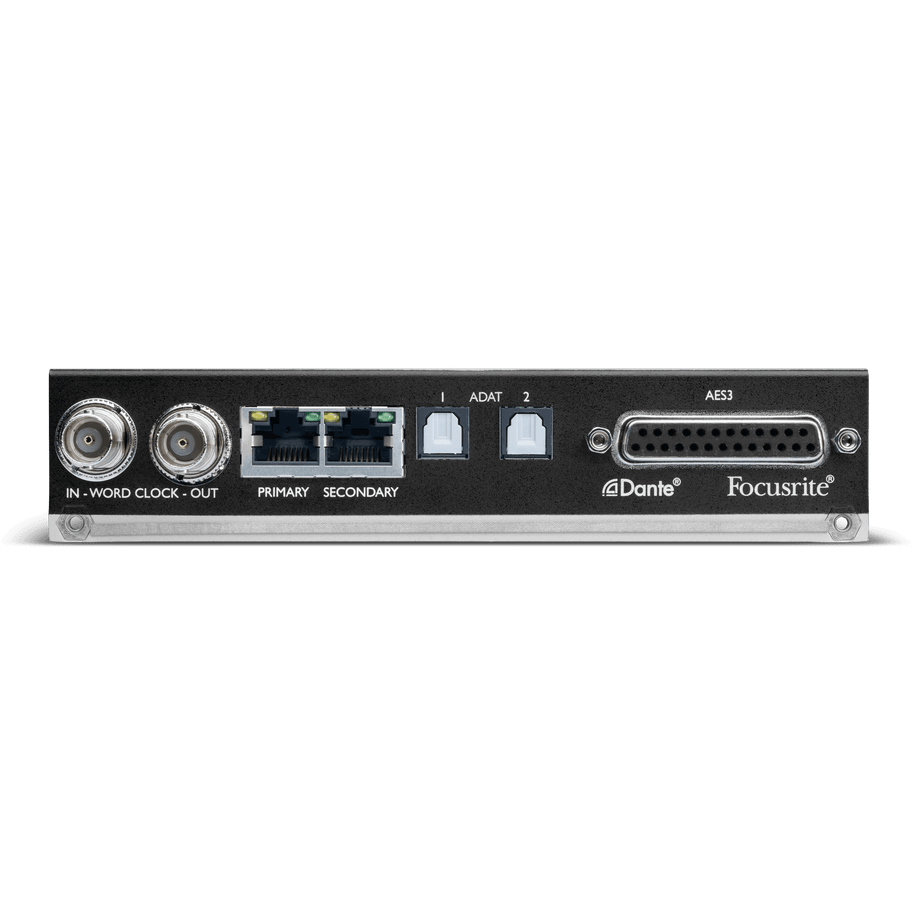

The card offers a familiar set of standard professional connectors with primary and secondary RJ45 Dante output ports, an AES59 DB25 connector for AES3 output, and a pair of TOSLINK connectors for ADAT output. Word Clock I/O on BNC connectors allows synchronisation with many external devices.

Dante outputs on the ISA ADN8 provide ISA 428 MK2 and ISA 828 MK2 with network connectivity to all Focusrite RedNet devices and Red interfaces, as well as any other Dante-enabled device from hundreds of manufacturers. Metering and settings are accessed through RedNet Control, routing is configured using Dante Controller. RedNet Control software included.

Eight-channel A-D card for ISA 428 MKII and ISA 828 MKII, including Dante connectivity

ISA ADN8 is an optional eight-channel A-D card that provides high-quality analogue-to-digital conversion for the Focusrite ISA 428 MkII and ISA 828 MkII microphone preamps. Featuring Dante, AES3 and ADAT connectivity, the card operates at sample rates up to 24-bit / 192kHz.

The card offers primary and secondary RJ45 Dante output ports, an AES59 DB25 connector for AES3 output, and a pair of TOSLINK connectors for ADAT output. Word Clock I/O on BNC connectors allows synchronisation to multiple digital sources. This also includes syncing the Dante network to house clock, or for syncing external equipment to the Dante network.

Dante outputs on the ISA ADN8 provide ISA 428 MkII and ISA 828 MkII with network connectivity to all Focusrite RedNet devices and Red interfaces, as well as any other Dante-enabled device from hundreds of manufacturers. Metering and settings are accessed through RedNet Control, routing is configured using Dante Controller.

And as with all Focusrite Pro products, wherever you happen to be in the world, you can rely on a three-year warranty if any Focusrite Pro hardware needs repairing or replacing due to a manufacturing fault.

The Focusrite Studio Console reborn in your DAW

The Focusrite Studio Console defined countless hits of the 80s and 90s, thanks in large part to its ISA 110 Equaliser and ISA 130 Dynamics Modules. Brainworx's bx_console Focusrite plug-in brings you stunningly accurate emulations of both in a single plug-in, perfectly capturing the famously warm, open sound of two of the most revered pieces of studio hardware ever made.

Enjoy 3 years of warranty

All Focusrite products are built to the highest standards, and are designed to provide many years of reliable performance.

Features

• Eight-channels of high-quality, precision analogue to digital converter for ISA 428 MK2 and ISA 828 MK2
• Up to 24-bit/192kHz sample rate
• Dante connectivity via Primary and Secondary Ethernet ports for redundancy and auto switchover in case of failure
• Industry standard eight-channel AES59 DB25 output connection for AES3
• Two TOSLINK connectors for ADAT (8 channels at up to 96kHz; 4 channels at 192kHz)
• Word Clock I/O on BNC connectors allows synchronisation with many external devices
• RedNet Control and Dante Controller software allow Dante routing and control from a computer; no hardware patching required

Specifications

• Type: A/D Card
• Compatibility: Focusrite ISA 428/828 MKII
• Number of Channels: 8
• Data I/O: 2 x Ethernet (Dante: Primary, Secondary), 2 x Optical Toslink (ADAT), 1 x DB-25 (AES3)
• Clock I/O: In/Out
• Bit Depth: 24-Bit
• Sample Rate: 192kHz
• Dimensions: Height: 33.2mm / 1.31″ Width: 158.5mm / 6.24″ Depth: 202.4mm / 7.97″
• Weight: 0.59kg / 1.3lbs
