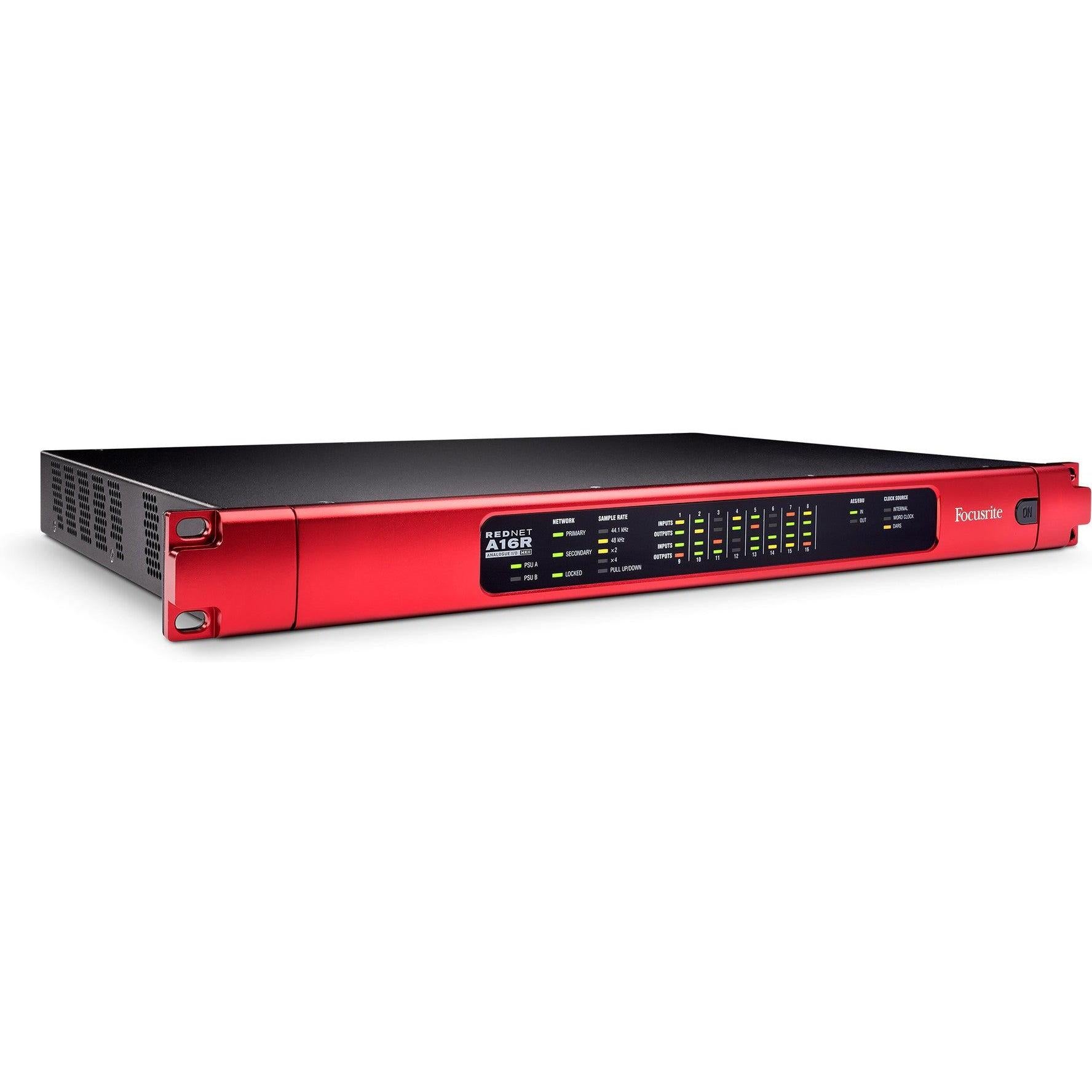

Focusrite RedNet A16R MkII 16×16 Analogue I/O With Independent Level Control
Focusrite RedNet A16R MkII 16×16 Analogue I/O With Independent Level Control
Couldn't load pickup availability
Afterpay Available
PayPal Available
Zip Pay Available
Description
RedNet A16R MkII is a 16-channel analogue Interface for Dante networks, with two channels of AES3 I/O.
Individual input and output channel level controls allow for precise adjustment of all I/O levels using RedNet Control. With two power supplies and primary and secondary etherCON network connectors, RedNet A16R MKII is perfect for critical-path applications in recording, post-production, live sound and broadcast. Built-in redundancy features allow for silent fail-over in the event of power or network outage, providing reassurance for system technicians.

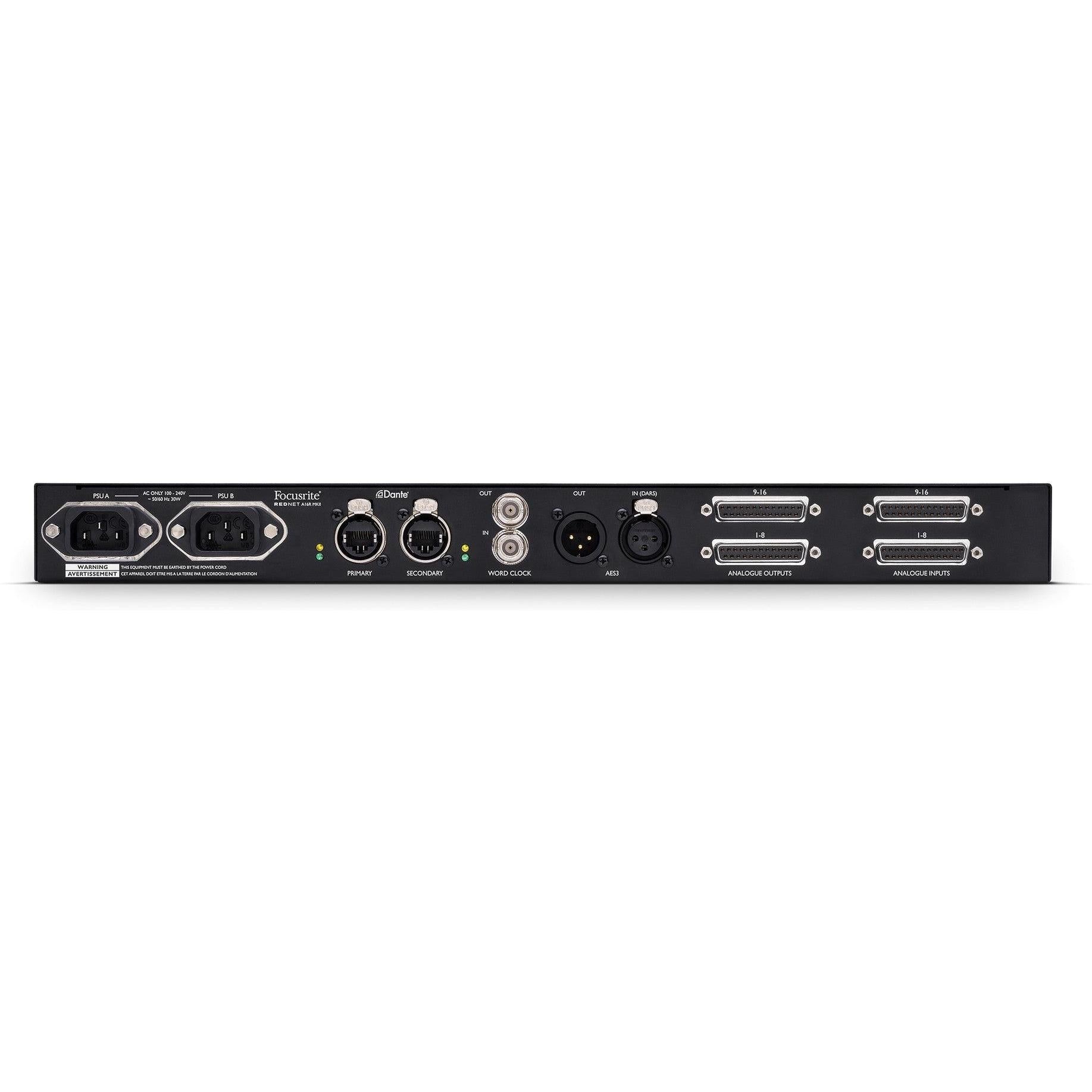

Analogue inputs and outputs are connected through four rear-panel AES59-configured DB25 connectors, while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. The XLR input can accept DARS signals in addition to AES3. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A16R MKII, or alternatively allows RedNet A16R MKII to act as a network clock grand master, synchronised to external input.
RedNet A16R MKII is well suited to permanent installation and repeated strike and setup: all connectors lock and remain terminated even under stress, providing worry-free installation and peace of mind once situated in a rack. In addition, all Focusrite products come with a three-year warranty and award-winning customer support.
16x16 AES3 I/O with independent level control
The RedNet A16R MkII is a 16-channel bi-directional AES3 interface for Dante® networks. The 1U rackmount device features individual input and output channel level controls, allowing for precise calibration and control of all input and output levels using RedNet Control. RedNet A16R MkII features power supply and Ethernet redundancy with auto switchover in case of failure.
Various connection options make RedNet A16R MkII a flexible addition to any Audio-over-IP system. A pair of DB25 multipin connectors each connect eight channels of AES3 I/O into and out of the interface, while XLR and RCA ports enable two-channel AES3 and S/PDIF connections, respectively, to be made.
Sample rate conversion on every input enables external equipment to operate at different sample rates, and DARS signals are accepted on the XLR connector. Word Clock I/O on BNC connectors allows synchronisation to house clock, or syncing external equipment to the Dante network.
The Focusrite Studio Console reborn in your DAW
The Focusrite Studio Console defined countless hits of the 80s and 90s, thanks in large part to its ISA 110 Equaliser and ISA 130 Dynamics Modules. Brainworx's bx_console Focusrite plug-in brings you stunningly accurate emulations of both in a single plug-in, perfectly capturing the famously warm, open sound of two of the most revered pieces of studio hardware ever made.
Enjoy 3 years of warranty
All Focusrite products are built to the highest standards, and are designed to provide many years of reliable performance.
Features
16-channel bi-directional analogue interface for Dante networks, with additional two-channel AES3 I/O.
Precision A-D and D-A conversion with 119dB dynamic range, flat from 20Hz - 20 kHz (+/- 0.15dB).
Individual input/output channel level control using RedNet Control software.
Dual PSUs with locking IEC inlets.
Dual locking etherCON connectors for Primary and Secondary network connections.
Power supply and ethernet redundancy with auto switchover in case of failure.

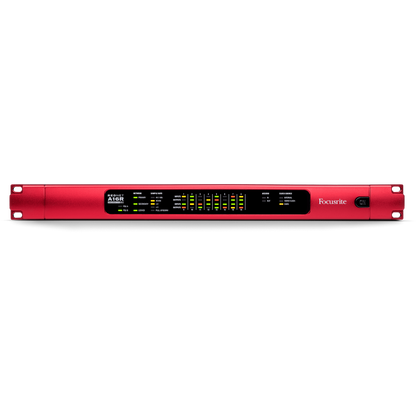

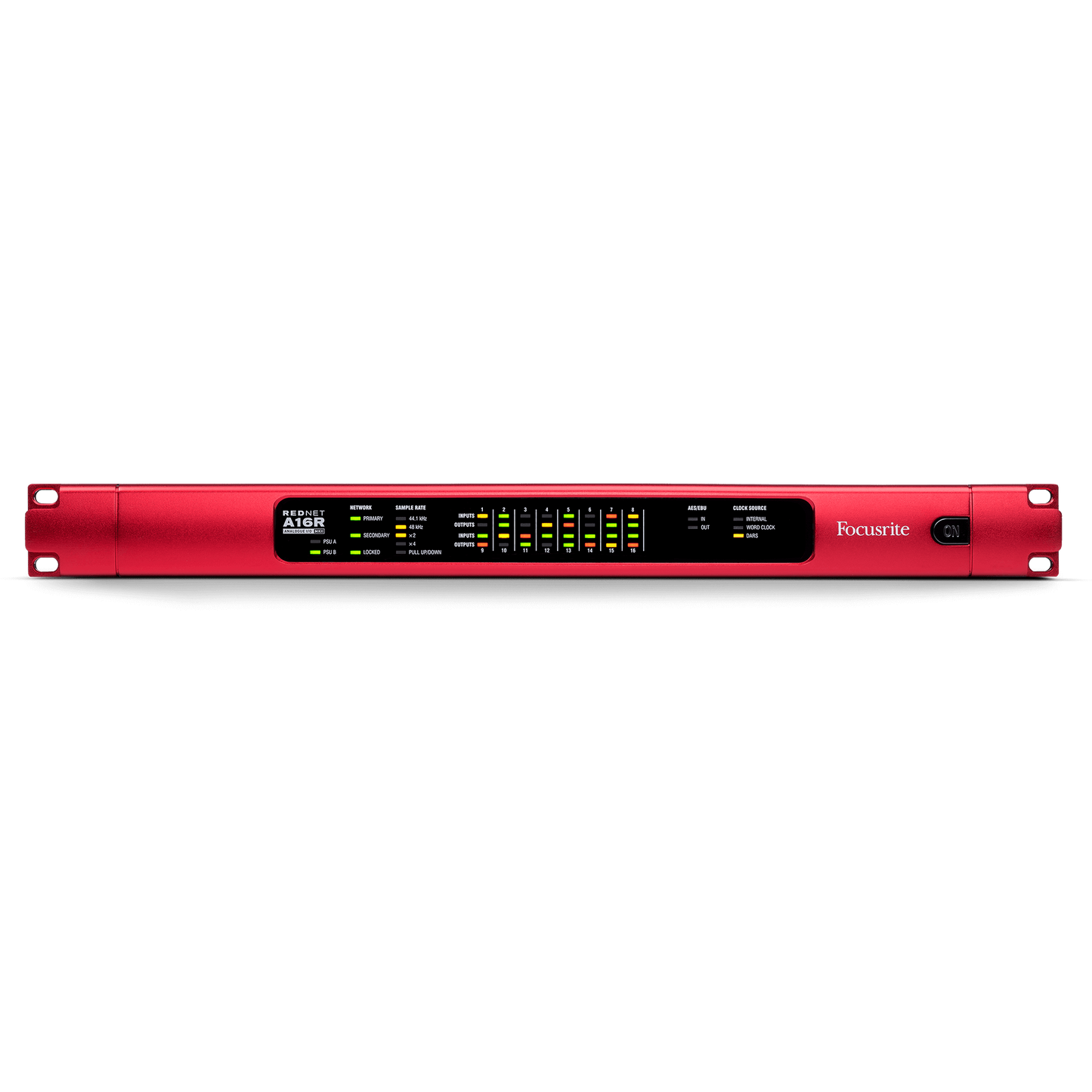

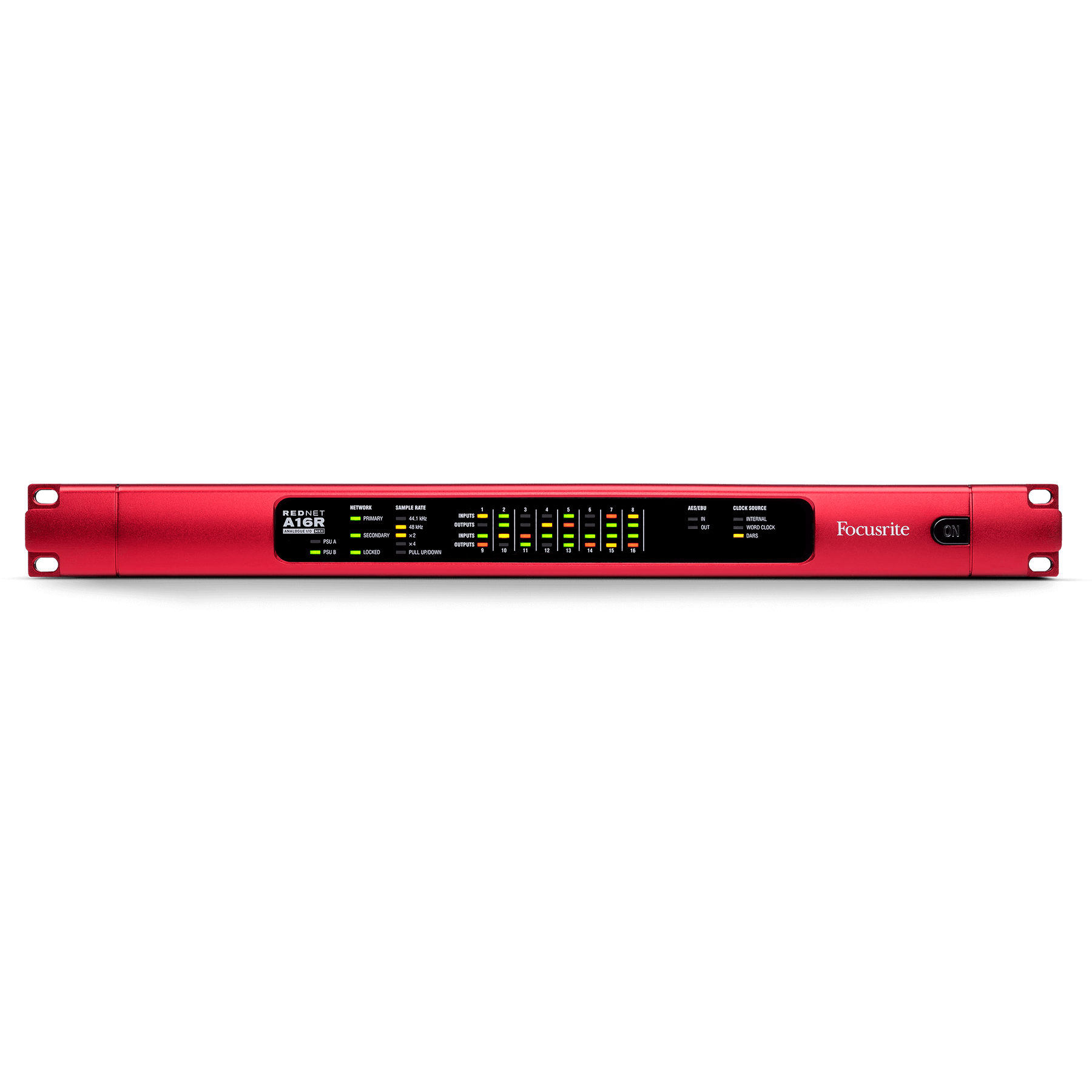

Front-panel LED indicators for PSU, network, sample rate, signal present and clock source status.
Sample rate conversion on the AES3 inputs allows external equipment to run at any sample rate.
Analogue I/O on four AES59 standard DB25 connectors.
Digital I/O on a pair of XLR connectors (AES3).
Rear panel XLR connector can either be used as a DARS input or as a traditional AES3 audio input.
BNC connectors for Word Clock input and output.
Compact 1U chassis allows maximum functionality in minimum rack space.
AES67 and AES70 compliant.
SMPTE ST 2110 compliant when used with Dante Domain Manager (sold separately).
Full operability with Focusrite RedNet and Red interfaces, plus all Dante devices from hundreds of manufacturers.
Remote control with RedNet Control, and route via Dante Control.
Specifications
- Type - Dante Audio Interface
- Form Factor - Rack Mount
- Simultaneous I/O - 16 x 16
- A/D Resolution - Up to 24-Bit/192kHz
- Analog Inputs - 2 x DB-25
- Analog Outputs - 2 x DB-25
- Digital Inputs - 1 x XLR (AES3)
- Digital Outputs - 1 x XLR (AES3)
- Data I/O - 2 x Ethernet (Dante)
- Network - Dante, RedNet
- Clock I/O - 2 x BNC (1 x Word Clock)
- Software - RedNet Control
- OS Requirements - Mac - OS X 10.9.5 or Later
- OS Requirements - PC - Windows 7 SP1 or Later
- Rack Spaces - 1U
- Power Supply - 2 x Standard IEC AC Cables
