Focusrite RedNet HD32R 32 Channel Bridge for Pro Tools HD

Description

RedNet HD32R is a 1U, 19in rack-mount Dante interface that allows Pro Tools|HD users direct access to the full benefits of the Dante digital audio networking system, including its uniquely flexible network topology and premium quality audio interfaces. The Pro Tools system is connected to the HD32R via standard Mini DigiLink ports.

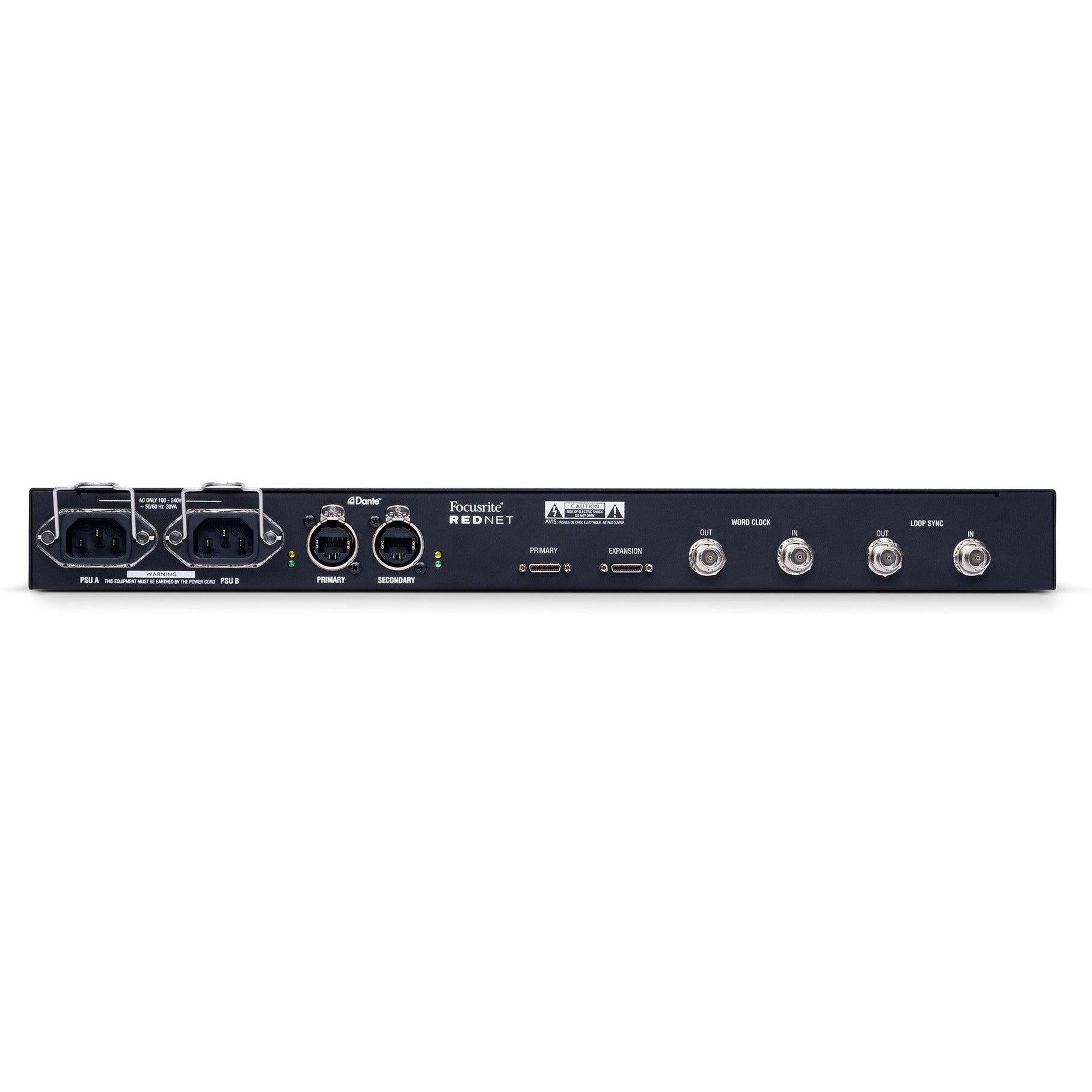

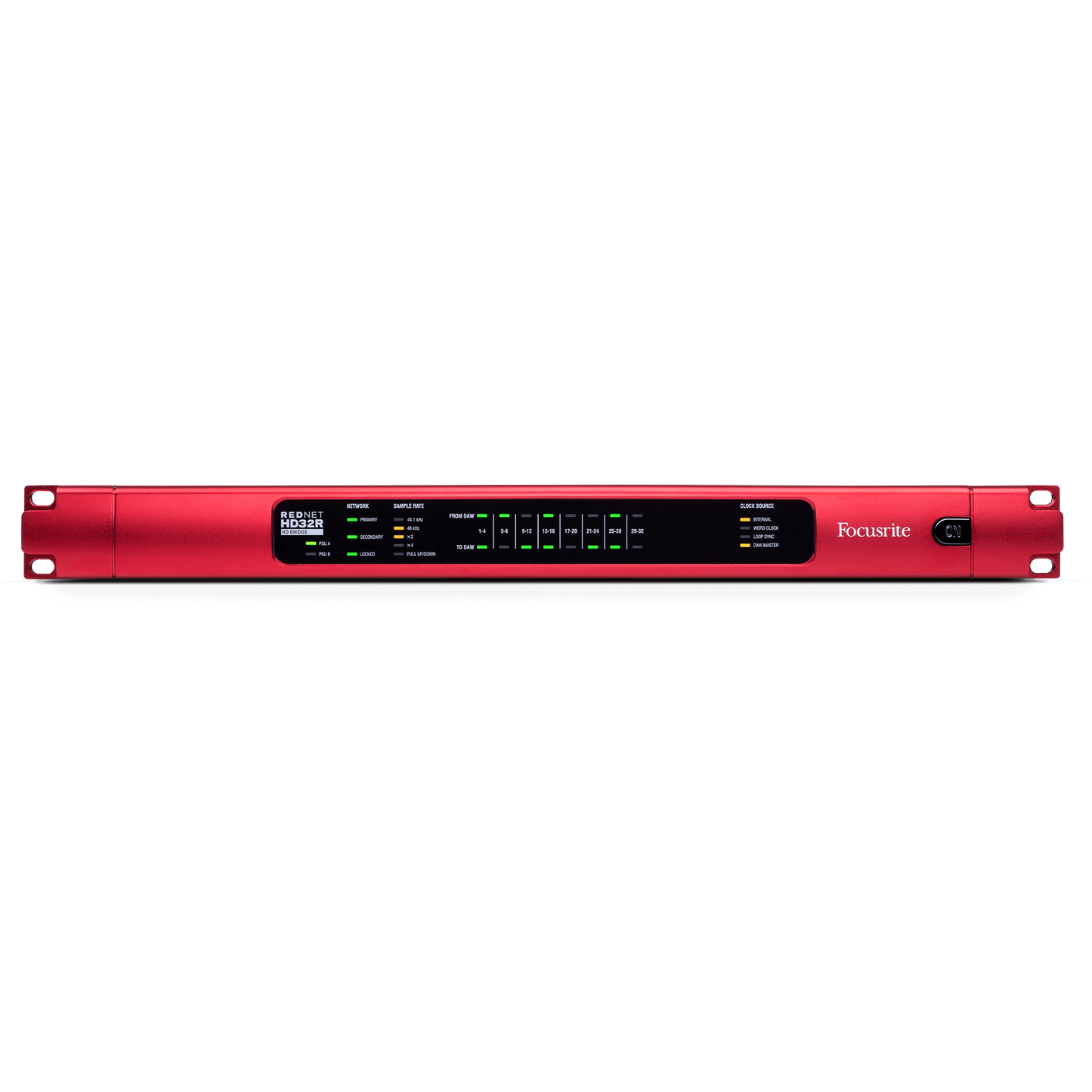

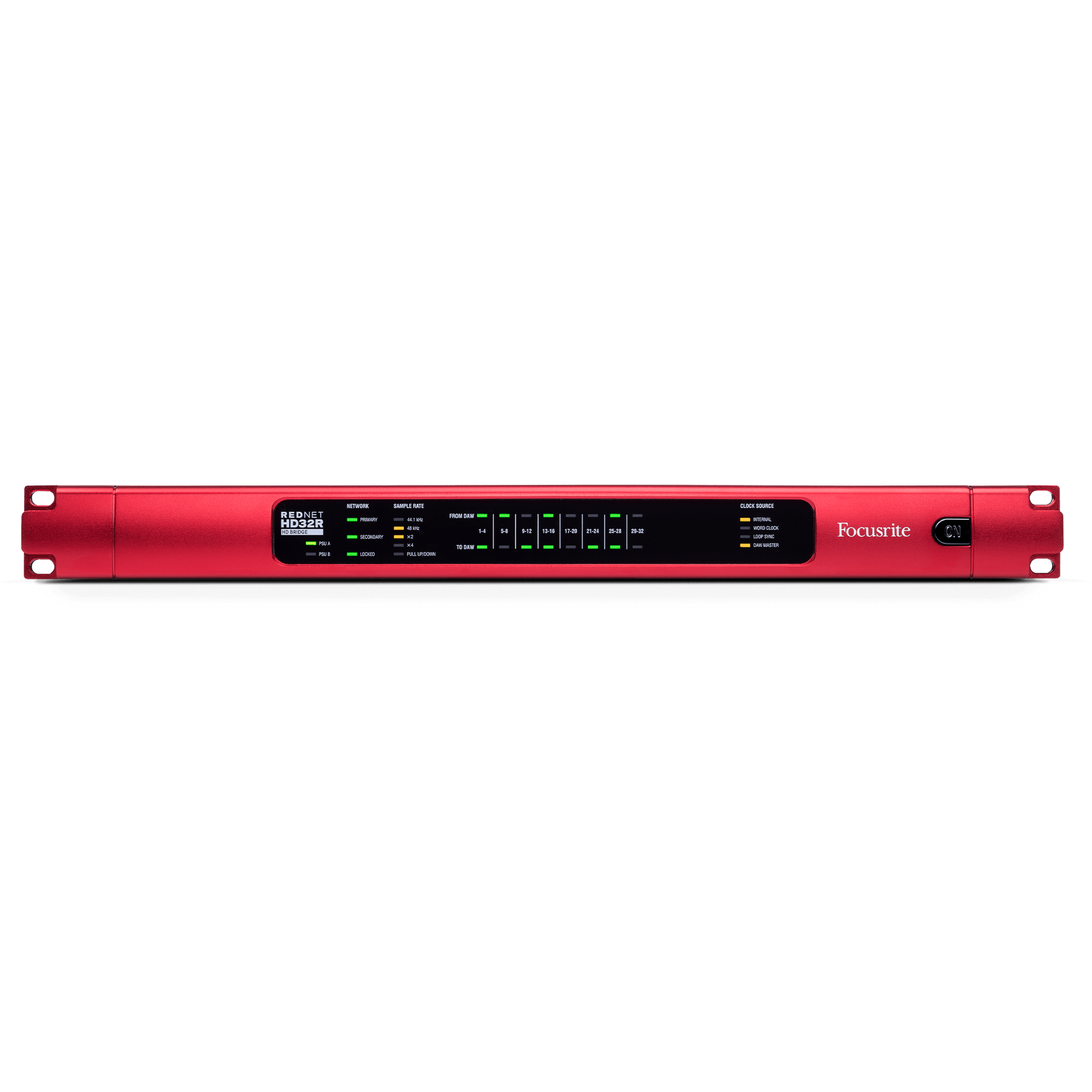

Dual Ethernet ports with locking etherCON connectors are provided, with several operating modes including daisy-chaining and redundancy confirmed by front-panel indicators. Two separate power supplies with fault detection capability are included, with separate power input sockets (with retaining clips) on the rear of the unit. Power state is indicated both remotely and on the front panel. The HD32R features a rugged, roadworthy exterior and high internal build quality. In addition, it offers a compact 1U rack-mount form factor for a full 32 channels of I/O.

HD32R acts as a 64-channel (32 in/32 out) digital break in/out box, operating in the same way as a standard interface, and supporting a wide range of Pro Tools|HDX and HD cards. Supported Pro Tools systems include Pro Tools|HDX, Pro Tools|HD Native, Pro Tools|HD Native Thunderbolt, and Pro Tools|HD TDM. Up to six HD32R modules can be used with a Pro Tools|HDX system and three with Pro Tools|HD, allowing the maximum channel count for either. Simply connect the HD32R to Pro Tools|HD with standard Mini DigiLink connectors.

HD32R allows the use of the low latency performance of Pro Tools|HD cards, bringing the full benefits of Dante audio-over IP networking and the RedNet product range to a Pro Tools|HD system. The entire range of Dante-compatible products including the superb RedNet analogue and digital interfaces can then be used with a Pro Tools|HD system, all connected via Ethernet cable.

From complex multi-room systems to single installations Dante and RedNet offer the ability to create a sophisticated and comprehensive high-quality audio production environment around a standard Ethernet network, with HD32R providing the bridge to any Pro Tools|HD system. Assign any available Dante source or destination via HD32R and it appears in Pro Tools exactly as it would with any other Pro Tools-compatible interface, maintaining traditional Pro Tools workflows.

32x32 Pro Tools | HD I/O with dual PSUs

RedNet HD32R is a 1U, Pro Tools | HD™ interface for any Dante™ audio-over-IP network, providing up to 32x32 channels of I/O (16x16 at 192kHz) Featuring network and power supply redundancy, RedNet HD32R is the ideal choice for integrating your Pro Tools HD system into a Dante networked I/O environment in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.

A pair of DigiLink mini connectors allows RedNet HD32R to connect directly to any Pro Tools | HD system whether it's Native, HDX or even a legacy TDM system. Multiple RedNet HD32R units can be on the same Pro Tools system up to the maximum I/O channel count of Pro Tools, and Loop Sync I/O allows seamless integration with other Pro Tools interfaces such as HD I/O and Sync HD I/O.

The Focusrite Studio Console reborn in your DAW

The Focusrite Studio Console defined countless hits of the 80s and 90s, thanks in large part to its ISA 110 Equaliser and ISA 130 Dynamics Modules. Brainworx's bx_console Focusrite plug-in brings you stunningly accurate emulations of both in a single plug-in, perfectly capturing the famously warm, open sound of two of the most revered pieces of studio hardware ever made.

Enjoy 3 years of warranty

All Focusrite products are built to the highest standards, and are designed to provide many years of reliable performance.

Features

• Allows Dante Ethernet-based audio networking products to interoperate fully with Pro Tools|HD & Pro Tools|HDX.
• Ethernet and power supply redundancy with auto switchover in case of failure and locking connectors.
• Provides the vital link to create an extensive high-quality audio network based on standard Cat 5e or Cat 6 wiring, bringing the latest advances in digital audio networking to Pro Tools|HD.
• Cost-effectively increase audio I/O quality and flexibility with RedNet interfaces.
• Permits multiple workstations to access the same interface hardware and I/O.
• No changes to Pro Tools workflow required — simple, logical assignment of RedNet I/O to Pro Tools|HD inputs and outputs.
• Up to 32 I/O with Pro Tools|HD over single DigiLink connection per RedNet HD32R.
• Additional Avid/Digidesign interfaces may be connected to expansion ports.
• Upgrade to RedNet interfaces while remaining fully compatible with TDM or AAX-DSP-based plugins and saved sessions.

Specifications

• Computer Connectivity: IP Network
• Form Factor: Rackmount
• Simultaneous I/O: 32 x 32
• Digital Inputs: 1 x BNC (Loop Sync)
• Digital Outputs: 1 x BNC (Loop Sync), 2 x DigiLink
• Clock I/O: 1 x Word Clock (In), 1 x Word Clock (Out)
• Data I/O: 2 x etherCON Ethernet
• Rack Spaces: 1U
