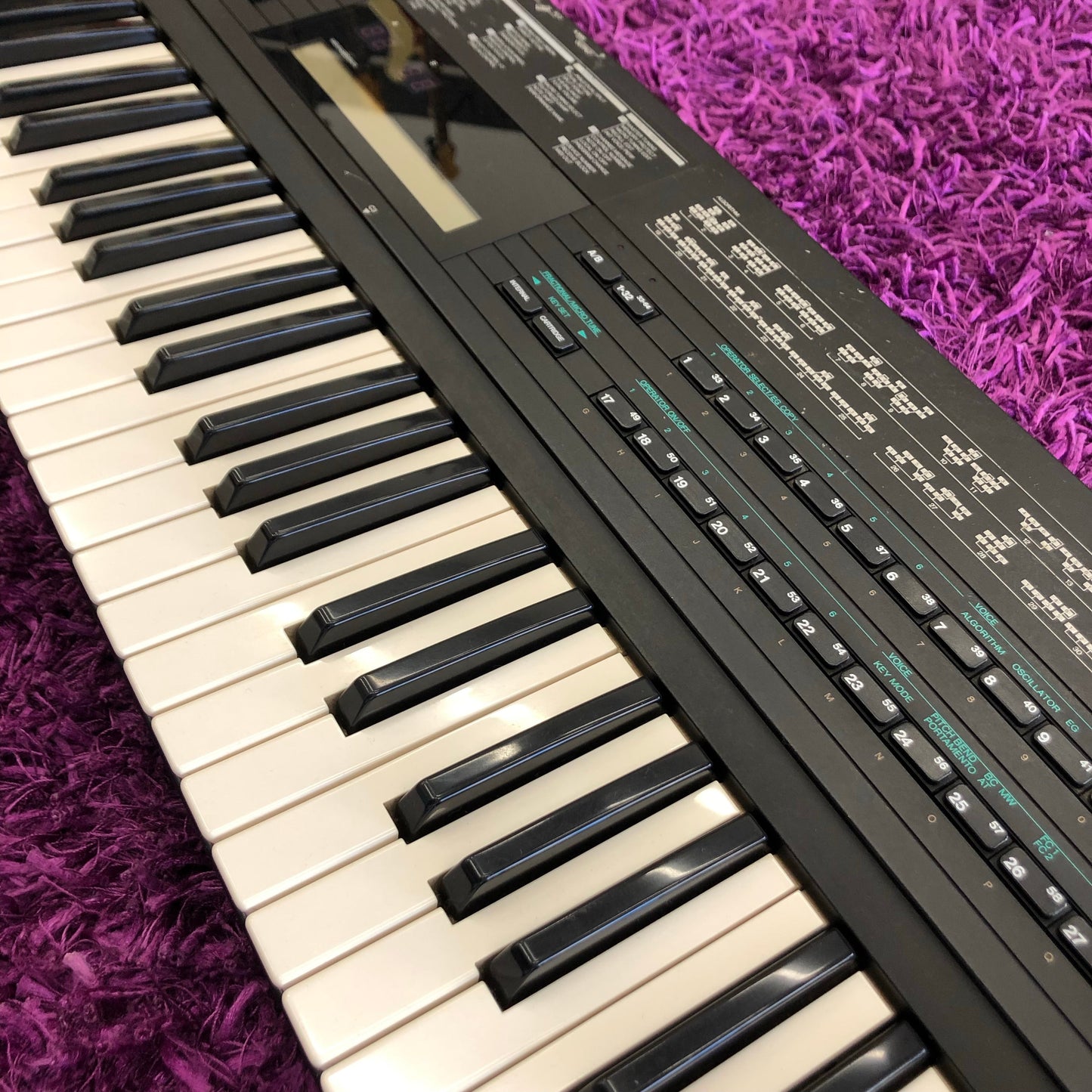

Yamaha DX7 II-D Digital Programmable Algorithm Keyboard Synthesizer (Made in Japan)

Yamaha DX7 II-D

The Yamaha DX7, arguably one of the most famous FM synthesizers in history and used by the likes of Talking Heads, Kraftwerk, Underworld and Phil Collins, got a significant update in 1987 with the release of the DX7 II-D. Updates included a restyled and stronger chassis, physical plastic buttons, upgrade from 12-bit to 16-bit operation as well as an increased patch memory (32 voices to 64) and the addition of bi-trimbality. This allowed the keyboard to be split and layered, providing a rich combination of sounds that could never be achieved on the DX7. Among other features, the DX7 II-D had pitch bend, multiple LFOs, micro-tuning and aftertouch capability.

This particular unit is in fair condition - there are some marks and scratches, as well as some residue from leftover tape and stickers. This one has some stories but has also been well maintained, with all keys having a nice springy action and a great response. The unit has been dismantled and serviced, with all contacts, switches and sockets being cleaned. Some of the program buttons require a firm press to work, however this does not affect the functionality of the keyboard. Other than that, this DX7II-D is in great working order. Please note this unit is 100V AC.

Specifications:

Make: Yamaha

Model: DX7 II-D

Origin: Japan, Late 1980s

Body: Metal

Keys: 61 Full Size Keys, Velocity and Aftertouch

Polyphony: 16 Voices (8 Voices in Dual Mode)

Oscillators: FM Tone Generator (6 Operators, 32 Algorhythms)

LFO: Sine/Square/Tri/SAW Up/SAW Down/Random

Filter: None

VCA: 6 Envelope Generators, 8 Parameters Each

Memory: Internal: 64 Voices/32 Performances, External: 128 Voices/64 Performances

Control: MIDI In/Out/Thru

Weight: 10.5kg

Shipping & Returns:

Domestic AU Shipping (Insured) - $Free

International Shipping (Insured) - $199.99

Local Pickup/Click & Collect - 135 New Canterbury Road, Lewisham 2049

The item is sold as is - if it is broken or damaged on arrival, we will offer you a return/refund. We cannot accept returns for change of mind or offer any warranty on used/vintage items.
